Sewage Treatment Plant

We offer Consultancy & project execution for STP (Sewage Treatment Plant) with latest technologies to name a few technologies are FAB or MBBR (Moving Bed Bio Reactor) SAFF based Treatment Plants for Sewage Water, Advance Treatment Plants etc with automatic operation semi-automatic operation or manual operation as per the requirement of the Clients /customers and as per site conditions and area availability.

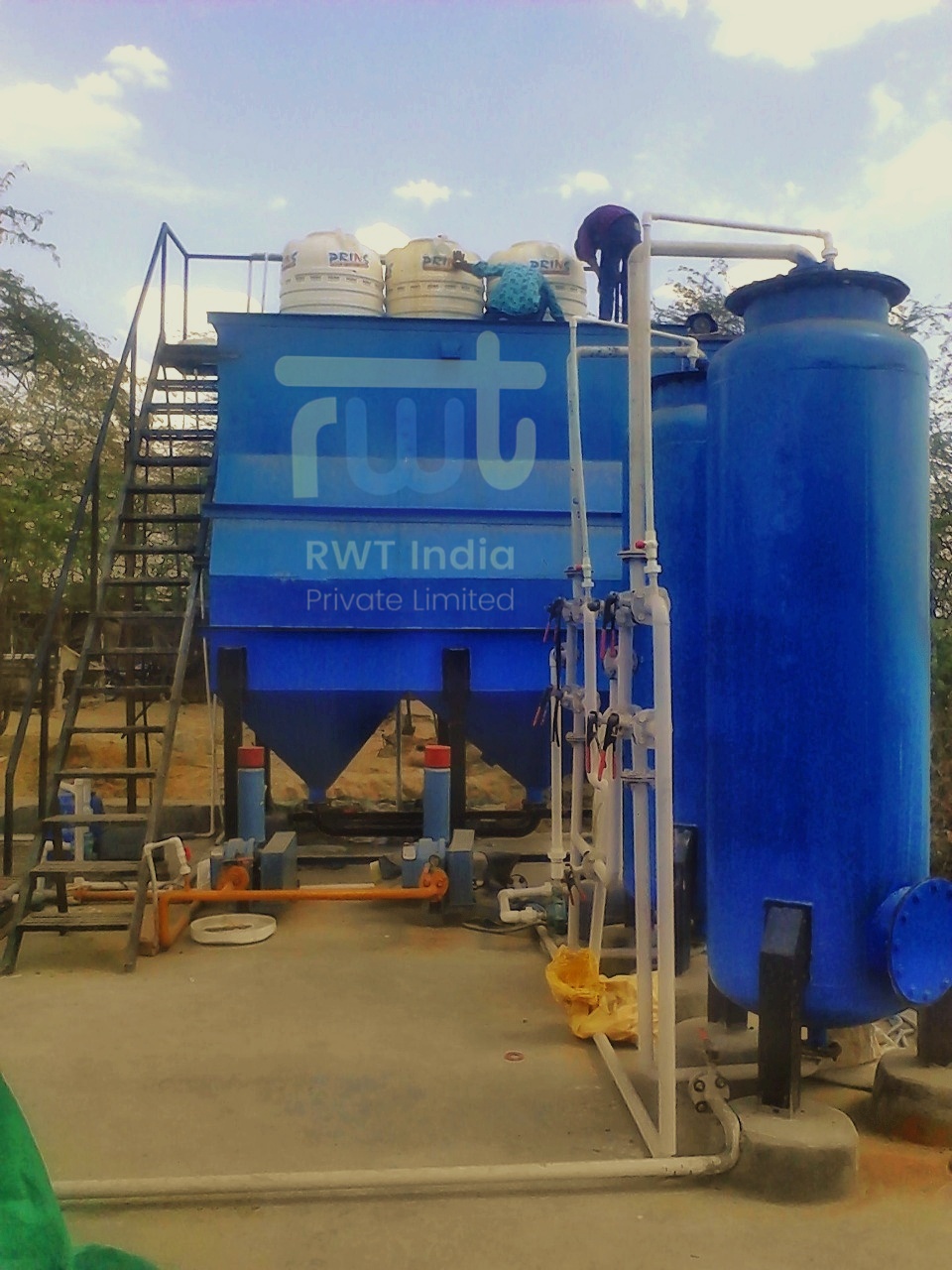

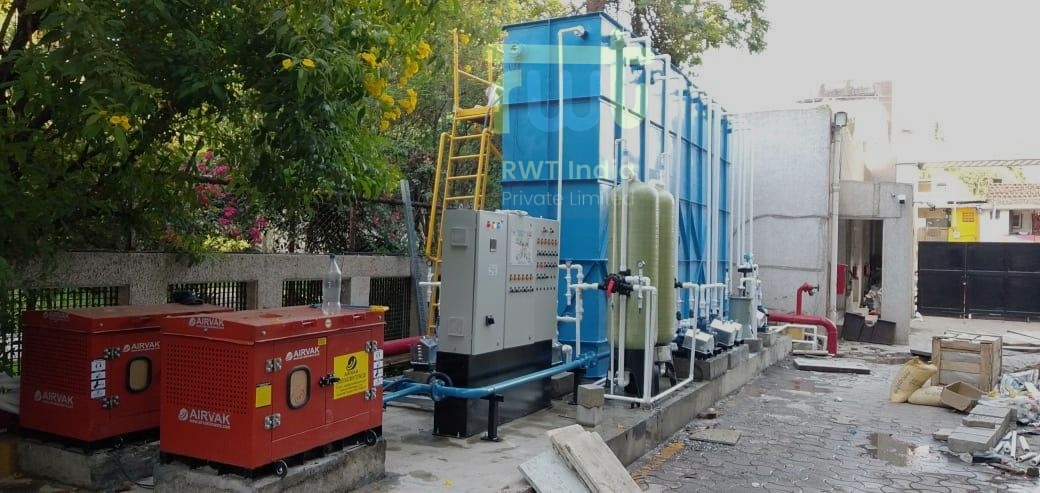

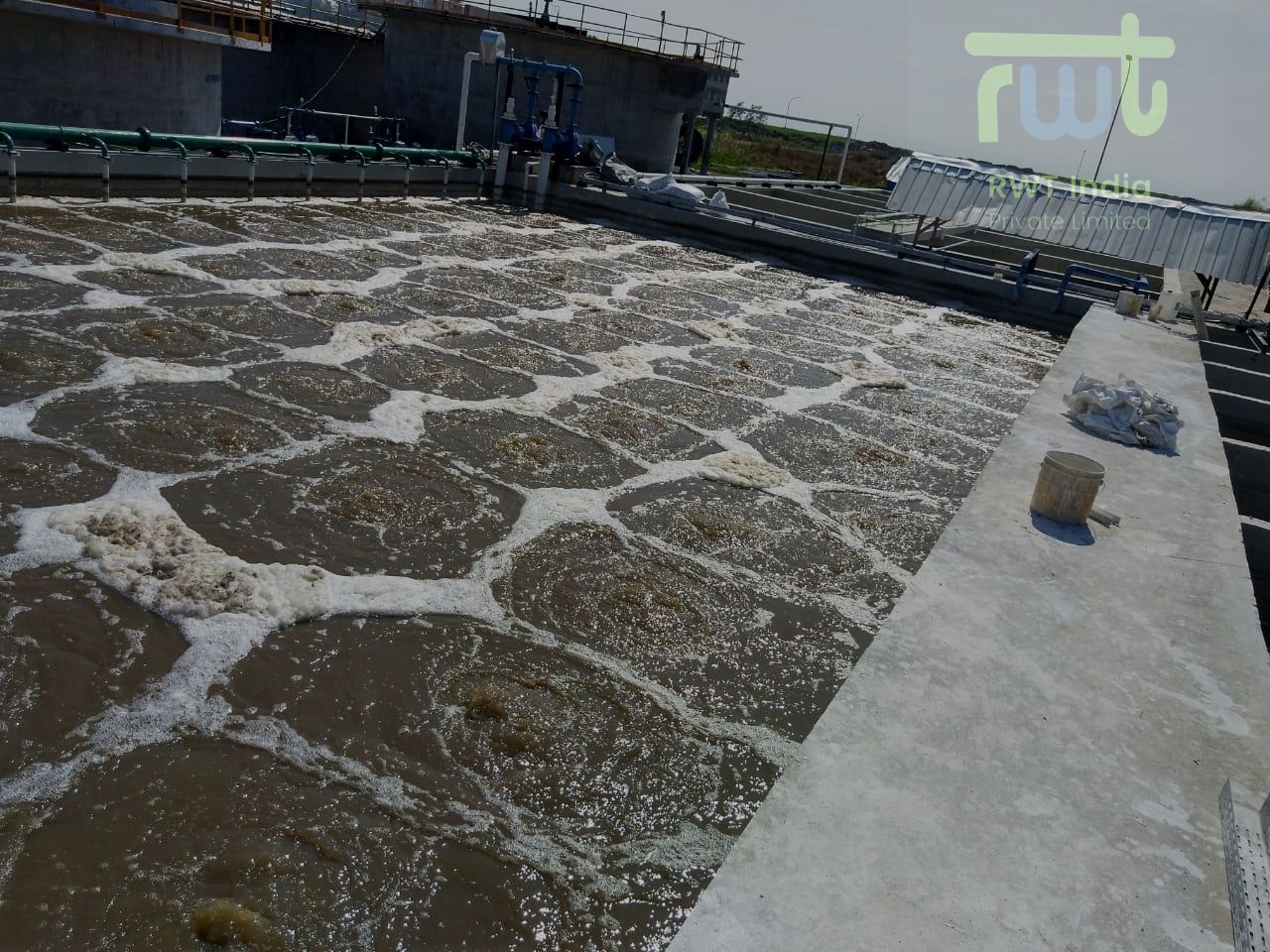

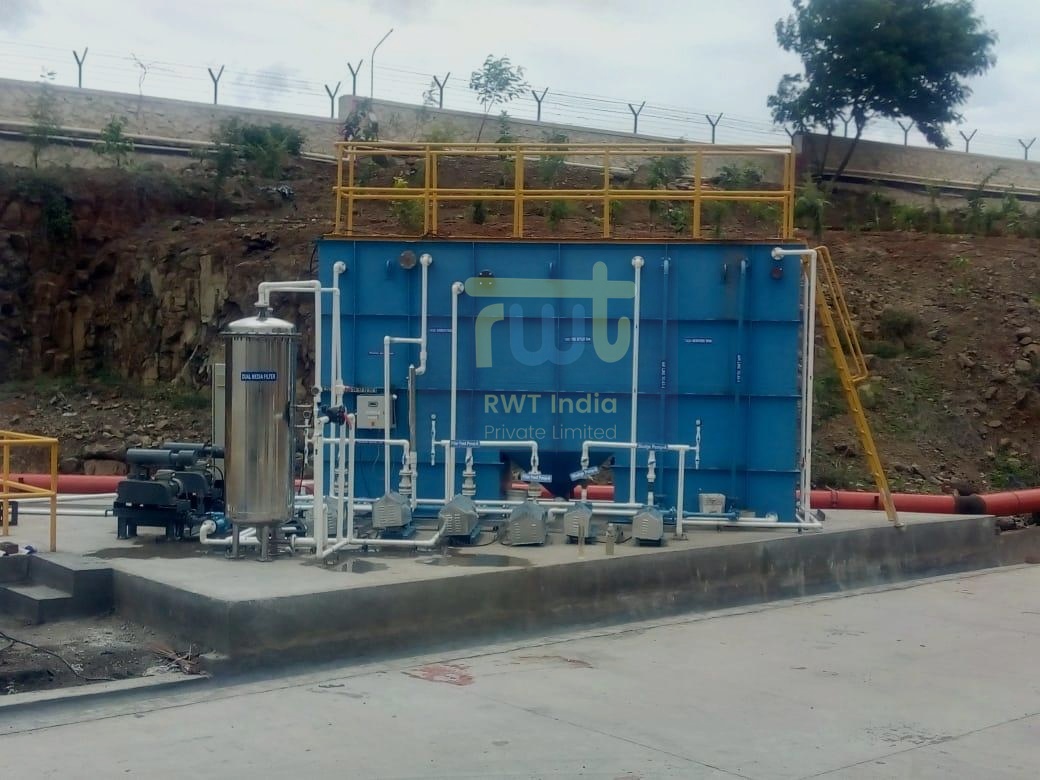

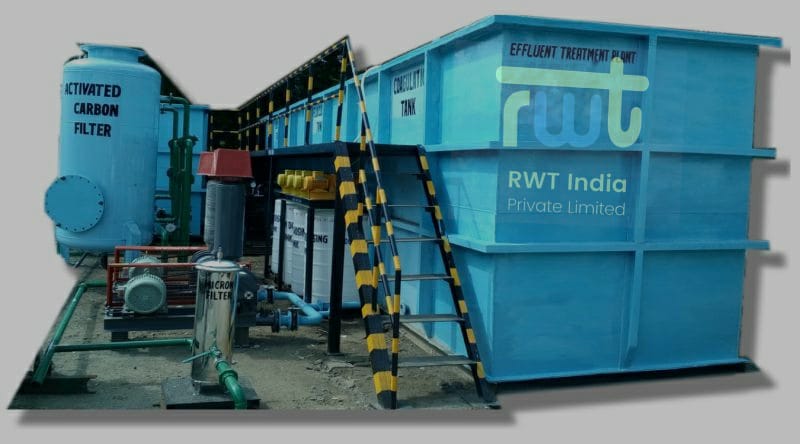

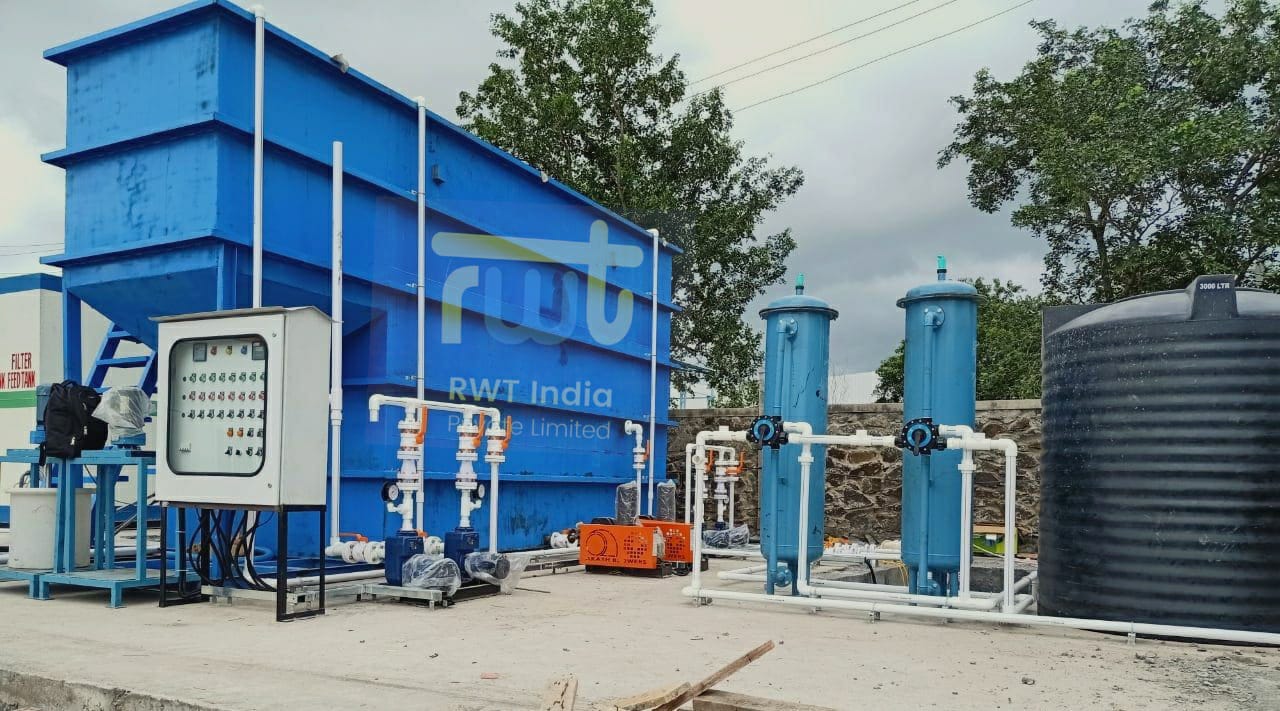

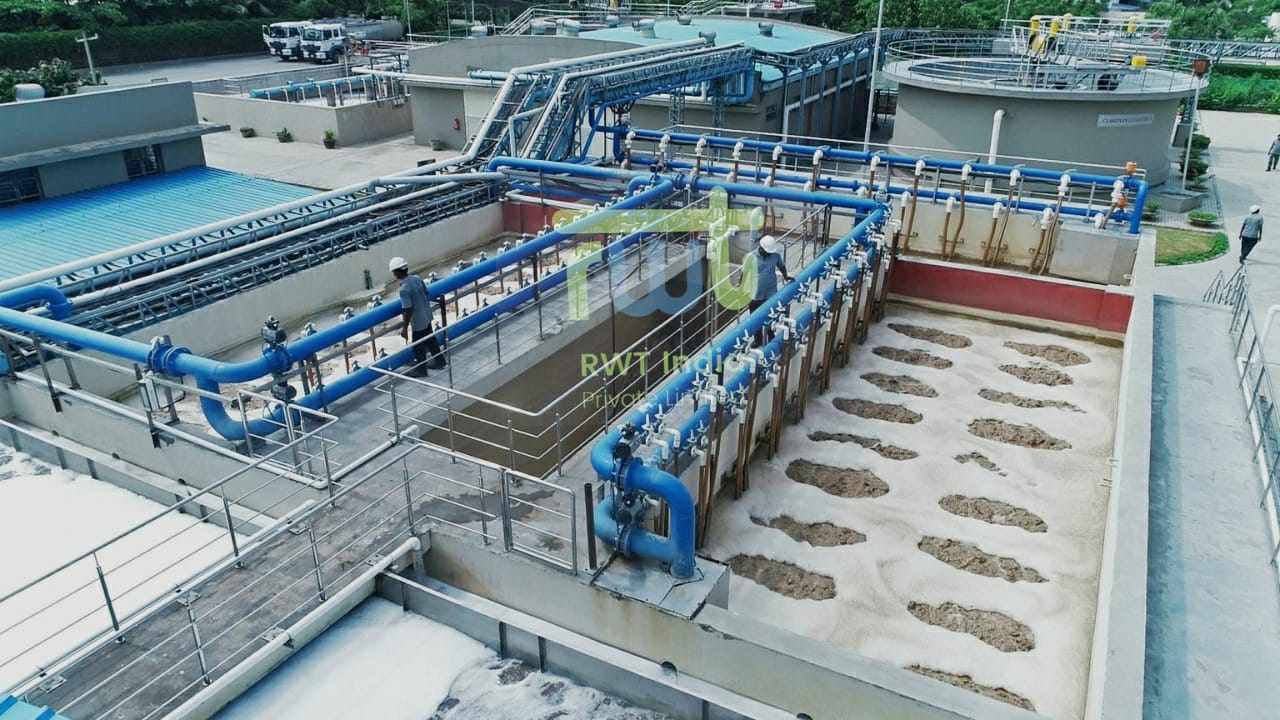

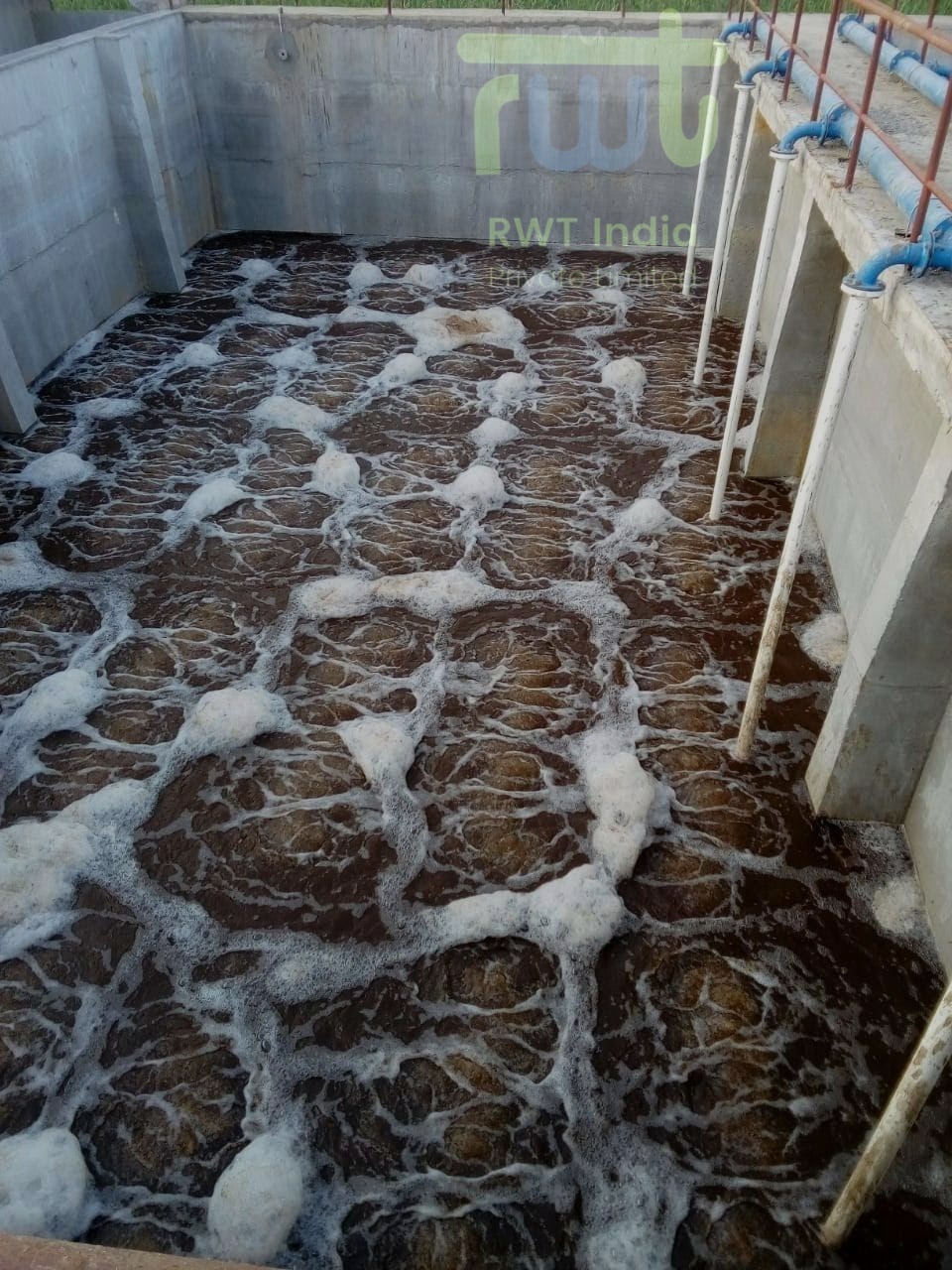

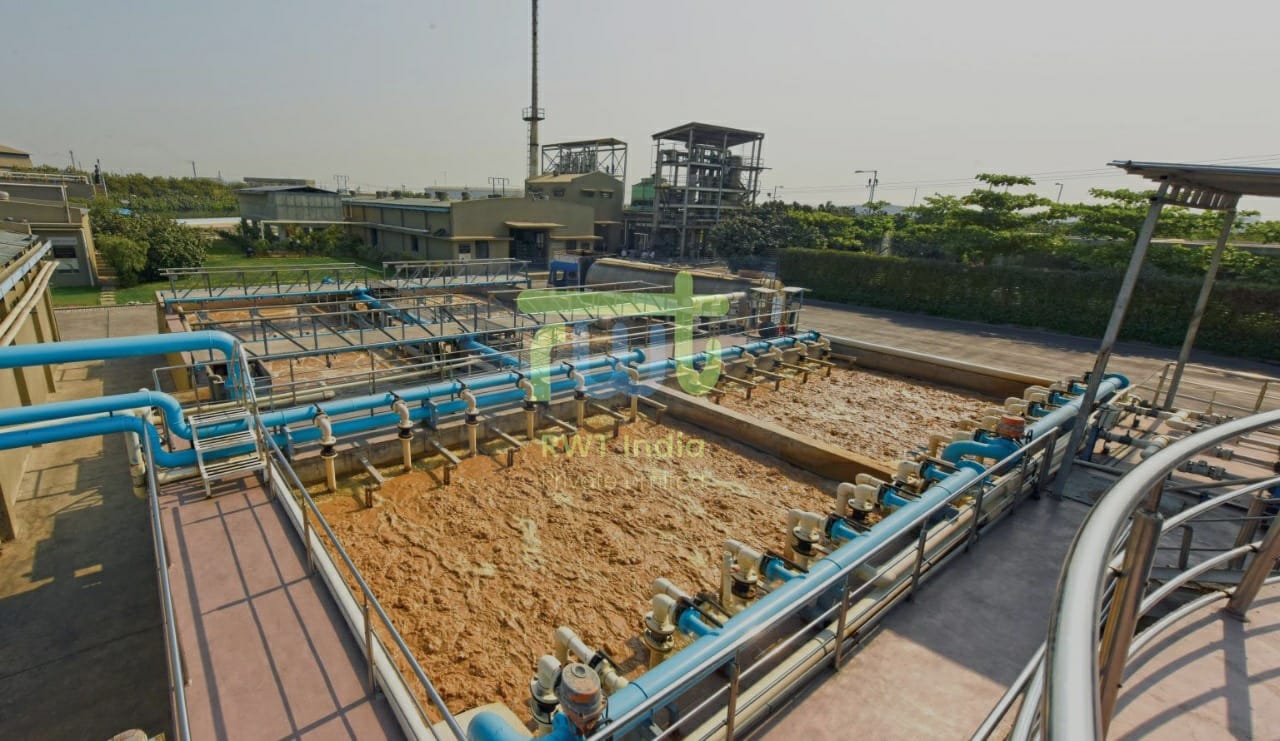

Project Pictures

Sewage Treatment Plant Manufacturers in Gujarat India
Sewage Treatment Plant Manufacturers in Gujarat India
Sewage Treatment Plant Manufacturers in Gujarat India
Sewage Treatment Plant Manufacturers in Gujarat India
Sewage Treatment Plant Manufacturers in Gujarat India
Sewage Treatment Plant Manufacturers in Gujarat India
Sewage Treatment Plant Manufacturers in Gujarat India
Sewage Treatment Plant Manufacturers in Gujarat India
Sewage Treatment Plant Manufacturers in Gujarat India
Make Inquiry

WE OFFER VARIOUS TECHNOLOGICAL OPTIONS TO THE CLIENTS

MBBR/FAB

Fluidised Aerobic Bio-Reactor (FAB), the space and power saving technology is a better alternative to conventional wastewater treatment plants that are large-sized, power intensive and require a lot of monitoring.

FAB offers an effective option to the conventional systems made unviable due to scarcity of open space, geographical network of piping, high power and land cost.

BENEFITS

  • Odourless operations, with a self-regulating system
  • High bio-film surface area, compact plants with high loading rates
  • Reduced power consumption
  • Simple to operate, low maintenance requirements
  • Non-clogging design, better oxygen transfer efficiency
  • Attached growth process, low sludge production, no sludge recycling or monitoring of M.L.S.S.
  • Removes E-coli (coli form)

APPLICATIONS

  • Commercial complexes
  • Hotels
  • Hospitals
  • Industry
  • Institutes
  • IT parks
  • SEZ
  • Residential colonies

FLUIDISED AEROBIC BIO REACTOR

Fluidised Aerobic Bio-Reactor (FAB) as the name indicates consists of floating media of cylindrical shapes and different sizes. As compared to conventional technologies FAB reactors are compact, energy efficient and user friendly.

Sewage Treatment Plant Manufacturers in Gujarat India

BASIC PRINCIPLE

Flock forming organisms form clusters or attach to available surfaces. The FAB media provides a very large surface area which

  • Increases the specific volumetric capacity of activated sludge tanks
  • Controls biomass activity
  • Reduces operating cost.

The clarified effluent enters into the FAB reactor, which contains the FAB media. The FAB media significantly increases the surface area for bacterial growth. Air is supplied through fine bubble diffusers. Bacteria oxidize the organic matter present in the sewage. Oxidized sewage overflows out of the FAB reactor, into the secondary settling tank.

ADVANTAGES USING FAB REACTOR:

  1. Significant reduction in space requirement due to high surface area & loading rate of FAB media.
  2. Reduced power and operating costs.
  3. No sludge recycle required hence no sludge recycle pumps.
  4. FAB Reactor is best suitable when designing a new waste water treatment plant, where operating cost & space are constraints.
  5. Upgrading of existing waste water treatment plants.
  6. Operate plants in low temperature areas.
  7. Reduce bulking problems in existing treatment plants.

APPLICATIONS OF FAB

  1. Decentralized compact sewage treatment plants for Residential complexes, Hotels / Commercial Center?s / Office Premises / Industries and Rural communities.
  2. Industrial wastewater treatment from:
    1. Food & Beverage
    2. Textiles
    3. Pulp & Paper
    4. Chemicals
    5. Pharmaceuticals
    6. Petro-Chemicals
    7. Dairy Production

COMPARISON OF FAB REACTOR VS. CONVENTIONAL ACTIVATED SLUDGE PROCESS

Parameter FAB Reactor Conventional ASP
Space requirement Reduced to one-third that of conventional ASP due to increase in surface area by special media. Large area required
Aeration & clarifying tanks Fabricated tanks offered by us. Civil tank (to be built by client)
Portability Easy for relocating in other camps Fixed construction in civil cannot be moved.
Requirement of sludge Sludge recycle is not required and hence no pumps. Separate pumps required
Operation & Maintenance Easy for operation and maintenance  Tedious for maintenance of MLSS and achieving the end quality

COMPACT SEWAGE TREATMENT PLANT/SKID MOUNTED

Lack of space we offer package type compact Sewage Treatment Plants, Skid mounted or containerized Sewage Treatment Plants. We have supplied Compact STP as per space requirement.

WE ALSO SERVE FOR REVAMPING & UP GRADATION OF SEWAGE TREATMENT PLANT ON FOLLOWING CONDITION:
